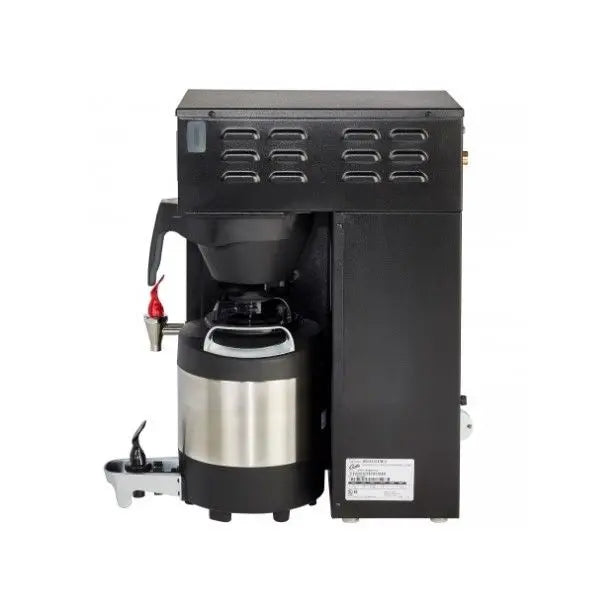

Wilbur Curtis G4 Single 1.0 Gal. Coffee Brewer (Black)

Sale price$1,913.80Regular price $2,734.00
Wilbur Curtis

Curtis brewer consistency is what the best hotel lobbies and restaurants rely on.

The G4 and Genesis lines use precision water temperature control and saturator technology to deliver batch after batch of coffee at the exact specification — every pot, every service, every day.

The Details

Precision Water Temperature

Water temperature held at the exact target throughout the brew cycle. Consistent extraction temperature means consistent flavor — batch after batch.

High-Volume Throughput

Designed for the batch volumes commercial service demands. Keep up with morning rushes and peak periods without brewing cycle delays.

Touchscreen Control

Intuitive touchscreen interface for programming and monitoring. Easy staff operation — set recipes once, run them consistently.

Commercial Build Quality

Stainless steel construction and commercial-grade heating elements. Built for daily commercial use — not household duty cycles.

Authorized Dealer. Expert Support. Every Machine. Coffee Machine Depot is an authorized dealer with hands-on experience across every machine we sell. Our team helps with selection, installation guidance, and ongoing support — call us at 323-592-3303. Financing available through Click Lease and our other financing partners for qualifying purchases.
Man standing next to espresso machine
Financing Options

Explore flexible financing options for your next business investment. Apply in minutes, get matched with best-fit lenders offering competitive terms, and choose the option that works best for you—so you can start using your equipment and growing your business faster.

Learn more

Product Details

Key Features
  • Advanced G4 Technology: Equipped with a Generation Four (G4) Digital Control Module, this coffee brewer features a large 4.3” touch screen with an icon-driven interface for streamlined operation. The digital control module ensures precise control over brewing time, temperature, and volume, enhancing your coffee experience.
  • Exceptional Coffee Freshness: The stainless steel ThermoPro® vacuum-sealed servers maintain your coffee’s freshness and flavor for an extended period.
  • Innovative Self Diagnostic System: Stay informed with real-time feedback on the brewing process and save energy with the brewer's energy-saving mode.
  • Gold Cup Series Standard: Adhere to the highest standards of brewing with digital controls that adjust for time, temperature, volume, pre-infusion, pulse-brewing, and water bypass for specialty coffee needs.
  • Pre-Set Global Recipes: Enjoy consistent quality with one-touch global recipes that are pre-set based on coffee type, grind, and weight.
  • Flexible Batch Brewing: This single unit brewer is versatile, allowing for field selection of one, two, or three batch brewing.
  • Hot Water Accessibility: A centrally located hot water spout provides instant access to hot beverages and meets other hot water needs.
Dimensions & Specs

Dimensions:

  • Height 24.750”
  • Width 11.130”
  • Depth 20.750”

Electrical Requirements for 120 Volts:

  • Volts: 120
  • Amps: 13.8
  • Heat Configuration: 2x1600W
  • Wire: 2W+G
  • Watts: 1650
  • Hertz: 50/60
  • Recommended Wall Outlet: NEMA 5-15R
  • Note: It ships in this configuration from Wilbur Curtis

Electrical Requirements for 220 Volts:

  • Volts: 220
  • Amps: 12.2
  • Heat Configuration: 2x1600W
  • Wire: 3W+G
  • Watts: 2700
  • Hertz: 50/60
  • Recommended Wall Outlet: NEMA 14-30R/ (3W+G) 4 Prong Outlet
  • Note: The electrical cord for 240V is not included.

Water Specs:

  • Connector 3/8” Flare
  • Pressure 20-90 psi
  • Minimum Flow Rate 1.0 GPM
  • Tank Volume 2.2 Gal.

Shipping Dimensions:

  • Height 30.00”
  • Width 17.00”
  • Depth 26.00”
  • Weight 44 lbs
  • Cube 7.67 cu.ft.
  • Certifications: UL / NSF
Water Filtration Requirements
  • Protect your investment and guarantee the best taste with our recommended water filtration systems:
  • For Single Boiler Machines: BWT Single Cartridge Filter enhances flavor and prevents scale.
  • For Double Boiler Machines: Optipure Reverse Osmosis Water System offers maximum purity and protective benefits, perfect for any high-demand setting.
