Product Details

Key Features
  • Rapid Heat-Up Technology: Engineered for speed, allowing the first brew in as little as 12 minutes on average from startup, depending on water temperature and external conditions.
  • Heat Exchanger System: Uses a 1.8-liter heat exchanger boiler, providing espresso brewing and steam capability from a traditional HX architecture.
  • Rotary Pump: Equipped specifically with a rotary pump for smooth, professional-style operation.
  • Dual Water Supply: The R FAST can operate using either its 1.8-liter internal water tank or a direct water connection, allowing flexible installation.
  • OLED Display: Integrated OLED display provides a modern interface for accessing machine information and functions.
  • Shot Timer: Built-in shot timing helps you monitor extraction time for greater consistency from shot to shot.

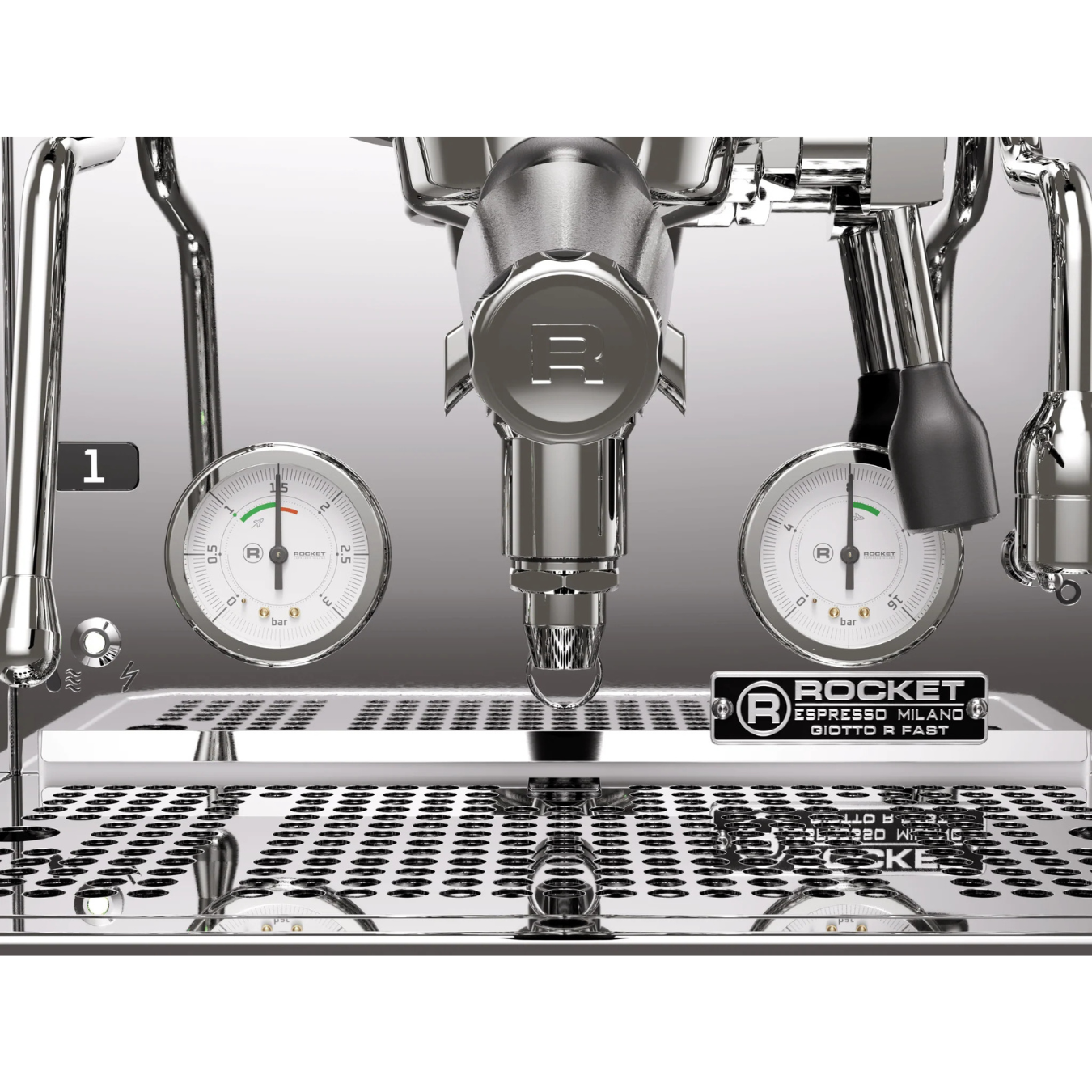

  • Dual Pressure Gauge: Provides clear pressure monitoring while maintaining the Giotto's classic Rocket Espresso aesthetic.
  • Tank Reserve Sensor: Monitors the internal water supply when operating the machine from its reservoir. This feature is specifically listed for the R FAST.
  • Energy-Saving Boiler Covering: The boiler incorporates an insulated covering designed to help improve energy efficiency and heat retention.
Dimensions & Specs
  • Machine Width: 340 mm / 13.4 in
  • Machine Depth: 457 mm / 18.0 in
  • Machine Height: 403 mm / 15.9 in
  • Machine Weight: 30 kg / 66.1 lbs
  • Boiler System: Heat Exchanger
  • Boiler Capacity: 1.8 L
  • Pump: Rotary
  • Water Supply: Water Tank or Direct Water Connection
  • Water Tank Capacity: 1.8 L
  • Tank Reserve Sensor: Yes
  • Display: OLED
  • Pressure Gauge: Dual
  • Energy-Saving Boiler Covering: Yes
  • Installed Power: 1850 W
  • Certification: NSF
Water Filtration Requirements

Protect your investment and guarantee the best taste with our recommended water filtration systems:

  • For Single Boiler Machines: BWT Single Cartridge Filter enhances flavor and prevents scale.
  • For Double Boiler Machines: Optipure Reverse Osmosis Water System offers maximum purity and protective benefits, perfect for any high-demand setting.
Cleaning & Maintenance

Daily Cleaning

Wipe and purge the steam wand after each use to prevent milk buildup, rinse portafilters and filter baskets, clean the drip tray, and backflush the group head to remove coffee oils and residue.

Weekly Maintenance

Soak portafilters, baskets, and shower screens in an approved cleaning solution, inspect group head gaskets and screens, and perform a deeper backflush to keep internal components clean.

Long-Term Care

Maintain proper water filtration to prevent scale buildup and descale the machine as needed based on water quality and usage to ensure long-lasting performance and consistent espresso quality.

Plumbing Requirements

For this single-boiler espresso machine, we recommend using a BWT Single Cartridge Water Filter or a comparable inline filtration system designed to reduce hardness, chlorine, and sediment. Regular filter replacement based on water usage and local water quality is strongly advised to extend the life of the machine and preserve flavor clarity.

Power Requirements
  • Voltage: 110V
  • Wattage: 1850W
  • Electrical: Standard North American outlet (dedicated circuit recommended)

Summary: It can run on a standard 110V outlet, making it well suited for coffee carts, small cafés, offices, and home espresso bars. Because it draws 1850 watts, it’s best to plug it into a dedicated 15–20 amp circuit, especially if you’re running other equipment (grinder, fridge, hot water tower) nearby. This setup is ideal for mobile coffee carts, where higher-voltage (220V) power isn’t always available.
